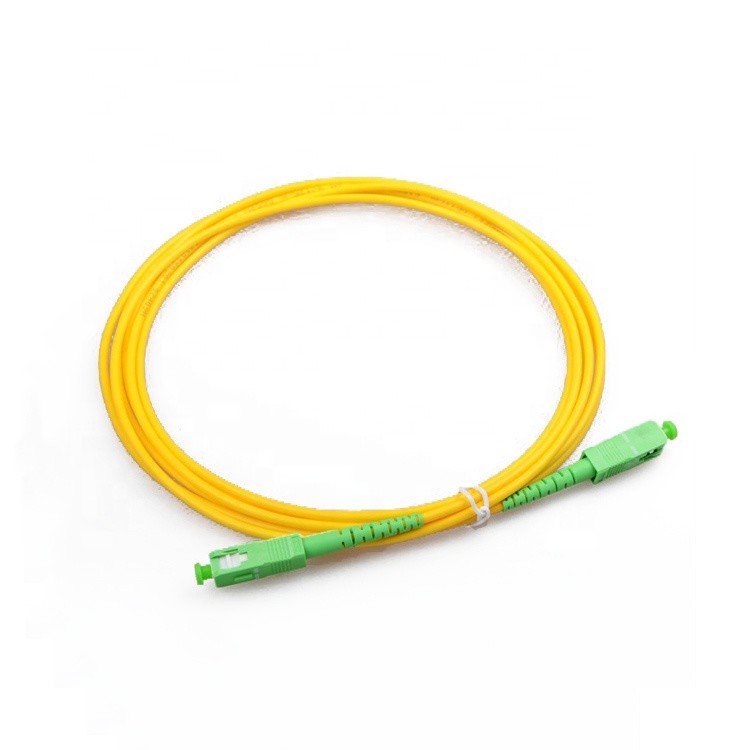

SC APC To SC APC Optical Fiber Patch Cable Single Mode Simplex

Place of Origin China
Brand Name Dierite
Certification ISO9001,CE,FCC,ROHS
Model Number SC APC to SC APC
Minimum Order Quantity 1000PCS
Packaging Details PE bag

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Diameter 0.9mm, 2.0mm,3.0 Mm Length 1m,3m,5m,15m,25m, Customized
Fiber Type OM1(62.5/125) OM2(50/125) Jacket Material PVC, LSZH
Jacket Color Aqua,customized
High Light

SC APC optical fiber patch cable

,

Fiber Patch Cable Single Mode Simplex

,

Simplex Optical Fiber Patch Cable

Leave a Message
Product Description

Single Mode Simplex SC APC to SC APC Fiber Optic Patch Cord​



Dierite provides various types of fiber optic patch cord. It is composed of a fiber optic cord terminated with different connectors on the ends, with the SC, ST, FC, LC. Patch cables are used for connections to CATV (Cable Television),telecommunication networks, computer fiber networks and fiber test equipment.



The 9/125μm OS2 single mode fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.



FEATURES

● Low insertion loss, high return loss

● Excellent mechanical endurance

● High credibility and stability

● Good in repeatability and exchangeability

● 100% Insertion, Return Loss, End Face and Interference inspection.



Applications:

  • Optic-fiber Communication Systems

  • Optic-fiber Data Communications

  • Optic-fiber Access Networks

  • Optic-fiber CATV

  • Test Equipment

  • Optic-fiber Sensors

Cable outer diameter φ0.9mm, φ1.6mm,φ2.0mm,φ3.0mm or customer specified
Cable length 1m,3m,5m,15m,25m,30m or customer specified
Fiber type B1.3=G652D,B6A1=G657A1,B6A2=G657A2,A1=50/125,A1b=62.5/125, OM3= Maxband*150,OM3=Maxband*300,OM4= Maxband*550,OM5=Maxband*550
Fiber count Simplex, Duplex
Outer jacket material PVC, LSZH
Outer jacket color Refer to Chromatogram
Connector A side Connector type LC, SC, ST, FC
Ferrule type UPC, APC
Connector B side Connector type LC, SC, ST, FC
Ferrule type UPC, APC
Marking&package Per customer's request or factory standard



Characteristic Item Test condition Single mode fiber Multimode Fiber
Optical property Insertion Loss (dB) UPC 1.31μm,LED ≤0.2dB ≤0.4dB
APC ≤0.3dB ≤0.4dB
Return Loss (dB) UPC 1.31μm,LD ≥55dB ≥25dB
APC ≥65dB -
Mechanical test Impulse test 1.8 height,8 times <0.1dB <0.1dB
Vibration test 10-60Hz,1mm full amplitude <0.1dB <0.1dB
Plug service life Above 1000times <0.1dB <0.1dB
Tensile strength ≥50N <0.1dB <0.1dB
Environmental property High temperature test +85℃,96hs <0.2dB <0.2dB
Cryogenic test -40℃,96hs <0.2dB <0.2dB
Damp heat test +40℃,90-95%RH,96hs <0.2dB <0.2dB



SC APC To SC APC Optical Fiber Patch Cable Single Mode Simplex 0SC APC To SC APC Optical Fiber Patch Cable Single Mode Simplex 1

SC APC To SC APC Optical Fiber Patch Cable Single Mode Simplex 2



Note:

Delivery length can be customized according to customer's requirements. Marking &Package is factory standard or per customer's request.

SC APC To SC APC Optical Fiber Patch Cable Single Mode Simplex 3
