GJYXCH Self Supporting Drop Cable PVC LSZH Fiber Optic Cable
| Place of Origin | China |
|---|---|
| Brand Name | Dierite |
| Certification | ISO9001 CE ROHS |
| Model Number | GJYXCH |
| Minimum Order Quantity | 1000M |
| Packaging Details | 1000M/Wood Roll |
| Delivery Time | 7-15 DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Diameter | 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm | Fiber Type | B1.3=G652D B6A1=G657A1 B6A2=G657A2 OM1=62.5/125 OM2=50/125 OM3= Maxband*150 OM3=Maxband*300 OM4= Maxband*550 OM5= Maxband*550 |
|---|---|---|---|
| Jacket Color | Yellow Orange Aqua Customized | Jacket Material | PVC LSZH |
| High Light | GJYXCH Self Supporting Drop Cable,GJYXCH PVC LSZH Fiber Optic Cable,PVC LSZH Self Supporting Drop Cable |
||
Product Description

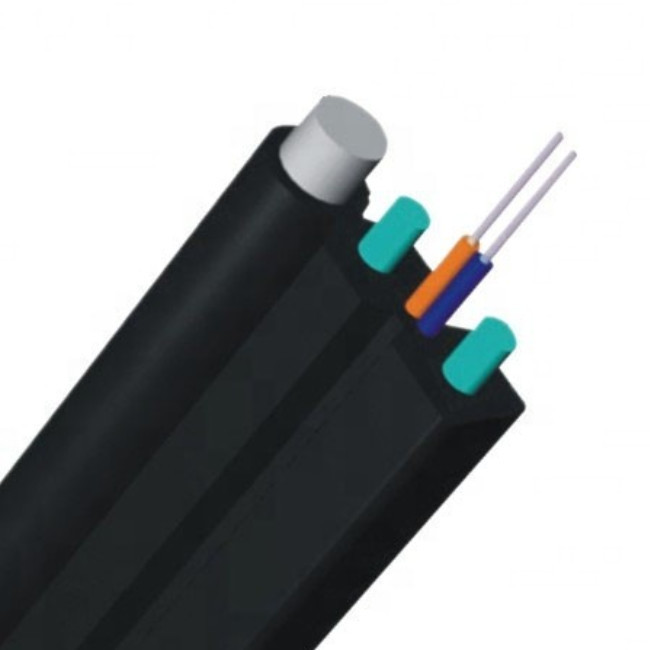

GJYXCH Self-Supporting Drop Cable Fiber Optic Cable
The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Product feature
▶ Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
▶ Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
▶ Single steel wire as the additional strength member ensure good performance of tensile strength.
▶ Simple structure, light weight and high practicability.
▶ Novel flute design. easily strip and splice, simplify the installation and maintenance.
▶ Low smoke, zero halogen and flame retardant sheath.
| No. of fibers | count | 1-2 |
| Strength member | Diameter | 0.45 mm |
| Material | Steel wire | |
| Outer jacket | Diameter | 5.0(±0.1)*2.0(±0.1) mm |
| Material | LSZH | |
| Color | Black | |
| Tensile performance | Short term | 200 N |
| Long term | 100 N | |
| Crush | Short term | 2200 N/100mm |
| Long term | 1100 N/100mm | |
| Cable attenuation | ≦ 0.4dB/km at 1310nm, ≦ 0.3 dB/km at 1550nm | |
| Cable weight (Approx.) | 10.0 kg/km | |
| Cable type | Caple diameter (mm) |
Optical cable reference weight (kg/km) |
Fiber buffer fiber diameter (mm) |
Tensile Strength Long/short term |
Crush resistance Long/short term |
Bending Radius Dynamic/static |
| ZCC-1.6 | 1.65*2±0.05 | 5.2 | 0.6±0.05 | 40/80 | 100/500 | 60/30 |
| ZCC-2.0 | 1.95*2±0.05 | 7.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
| ZCC-3.0 | 2.85*2±0.05 | 13.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
| Fiber type | Attenuation |
Full injection bandwidth |
Effective mode bandwidth | 10G Ethernet link length |
Minimum bend radius |
|||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Normal | Max | Normal | Max | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Note:
Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.
