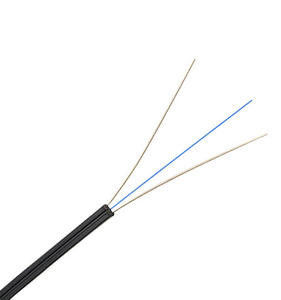

FTTH 1 Core Fiber Optic Drop Cable 2*3mm Self Supporting Cable
| Place of Origin | China |
|---|---|
| Brand Name | Dierite |
| Certification | ISO9001,CE,FCC,ROHS |
| Model Number | DRT |
| Minimum Order Quantity | 10km |
| Packaging Details | 2km/drum |
| Delivery Time | 3-15days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Indoor FTTH-drop Cable | Fiber Type | G.657A1 |
|---|---|---|---|
| Fiber Count | 1 Core | Construction | 2pcs Steels |
| Cable Diameter | 2*3mm | Outer Jacket Materail | LSZH |
| Samples | In Stock | Warranty | 1 Year |
| High Light | 2*3mm Self Supporting Cable,FTTH 1 Core Fiber Optic Drop Cable,1 Core Fiber Optic Drop Cable 2*3mm |
||
Product Description
FTTH indoor Butterfly Cable
1. Descreption of FTTH indoor Butterfly Cable (GJXH/GJXFH/GJXFJH/GJXFDH)
FTTH indoor butterfly cable is the optical communication unit in the center. Two parallel reinforcements (FRP/KFRP/steel wire) are placed on both sides. Finally, black or color low smoke halogen-free flame retardant sheath cable is extruded.
Covered optical cables are mostly single-core and double-core structures, and can also be made into four-core structures. The cross-section is 8-shaped, and the reinforcement is located at the center of the two circles. Metal or non-metallic structures can be used. The optical fiber is located at the geometric center of the 8-shaped. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed optical cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bright lines.
2. Features
♦ Special bending-resistant optical fibers provide greater bandwidth and enhance network transmission characteristics.
♦ Two parallel FRP/KFRP or steel wires have good compressive properties and protect optical fibers.
♦ Optical cable has simple structure, light weight and strong practicability.
♦ Unique groove design, easy to peel off, easy to connect, simplify installation and maintenance.
♦ Low smoke halogen-free flame retardant sheath, environmental protection.
3. Optical Characteristics
| Item | G.652 | G.655 | 50/125um | 62.5/125um | ||||||||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | |||||||||
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | ||||||||||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | ||||||||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | ||||||||||
| Bandwidth (Class A) |
@850nm | ≥500MHZ.km | ≥200MHZ.km | |||||||||
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | ||||||||||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||||||||||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | ||||||||||
4. Technical Parameters
<
| Cable Type | Fiber Count | Cable Diameter mm |
Cable Weight (kg/km) |
Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N/100mm) |
Bending radius Static/Dynamic (mm) |
||||||
| GJXFH-1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 8.0 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXFH-2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 8.5 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXFJH-1Xn | 1 | (2.0±0.1)×(3.8±0.1) | 9.0 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXFDH-1Xn | 4 | (2.0±0.1)×(4.0±0.1) | 10.0 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXH-1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 9.0 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXH-2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 9.5 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXJH-1Xn | 1 | (2.0±0.1)×(3.8±0.1) | 10.0 | 40/80 | 500/1000 | 15/30 | ||||||
| GJXDH-1Xn | 4 | (2.0±0.1)×(4.0±0.1) | 11 | 40/80 | 500/1000 | 15/30 | ||||||
| Environmental characteristics | ||||||||||||
| Operating temperature | -20~+60℃ | |||||||||||
| Storage temperature | -20~+60℃ |
|||||||||||
