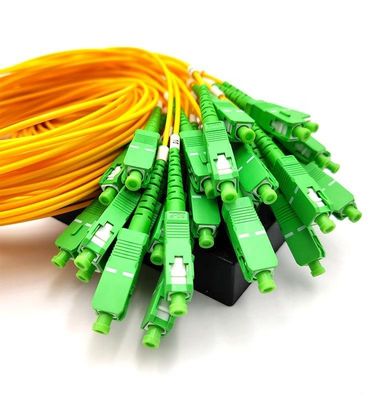

Splice Pigtailed 1X2 Fiber Optic Splitter ABS Module PLC Fiber Splitter 2.0mm Sc APC Singlemode
| Certification | CE, ISO, RoHS |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Fiber Distribution Frame, Network Equipment, Fiber Module | Light Source TYPE | Passive |
|---|---|---|---|
| Connector Type | SC-APC | Brand | OEM |
| Fiber Type | G657A1 Or Customized | Jacket Material | PVC/LSZH |
| Directivity (dB) | > 55 | Operating Wavelength(Nm) | 1260~1650(Nm) |
| Product Fiber Type | G657A1 Or As Customers′ Order | Ferrule Type | Upc, APC |
| Condition | New | Operating And Storage Temperature | -40~ + 85°c |
| Return Loss (dB) | 55/50 | Wiring Devices | ODF |
| Type | Fiber Optic Splitter&Coupler | Transport Package | Carton |
| Specification | Customizable | Trademark | Dierite |
| Origin | Changzhou Jiangsu China(Mainland) | HS Code | 854470000 |
| Supply Ability | 800000pieces/Month | Transmission Medium | Single-Mode |
| Structure | SC | Number Of Cores | Single-Core |
| Ferrule Endface | APC | Shape | Square |
| Fabrication Process | Moulded | Samples | US$ 0/Piece 1 Piece(Min.Order) | Request Sample |
| Customization | Available | Customized Request | ||
| High Light | Splice Pigtailed 1X2 Fiber Optic Splitter,1X2 Fiber Optic Splitter ABS Module,PLC Fiber Splitter 2.0mm Sc APC |
||
Product Description
Factory Direct Hot Sale Splice/Pigtailed 1X2 ABS Module PLC Fiber Splitter, 2.0mm, Sc APC, Singlemode
Product Description
Factory Direct Hot Sale SplicePigtailed 1X2 ABS Module PLC Fiber Splitter, 2.0mm, SC APC, SinglemodeTechnical parameters
| Operating Wavelength(nm) | 1260~1650(nm) | ||||||
| Fiber Type | G657A1 or as customers' order | ||||||
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Insertion Loss (dB) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Dependent Loss (-40~85) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Return Loss (dB) | 55/50 | ||||||
| Operating and storage Temperature(°C) | -40~ + 85 | ||||||
| Directivity (dB) | > 55 | ||||||
| Code | Splitter | |||||||
| Configuration | 0102 | 0104 | 0108 | 0116 | 0132 | 0164 | ||
| 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |||
| Connector Type | SC | LC | FC | ST | ||||
| Ferrule Type | UPC | APC | ||||||
| Fiber Type | G657A1 or Customized | |||||||
| Jacket | Material | PVC/LSZH | ||||||
| Color | Yellow | Blue | Black | Orange | Aqua | Purple | Customized | |
| Diameter (mm) | 2.0 | 3.0 | ||||||
| Cable Length(cm) | Input | 50 | 70 | 100 | 150 | Customized | ||
| Output | 50 | 70 | 100 | 150 | Customized | |||
Product profile

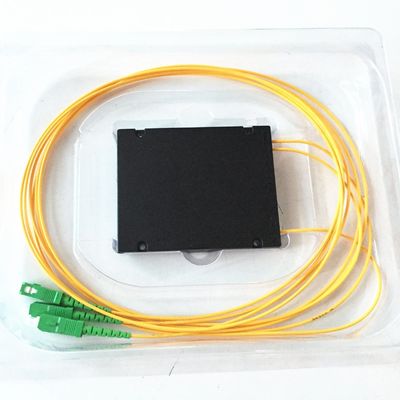

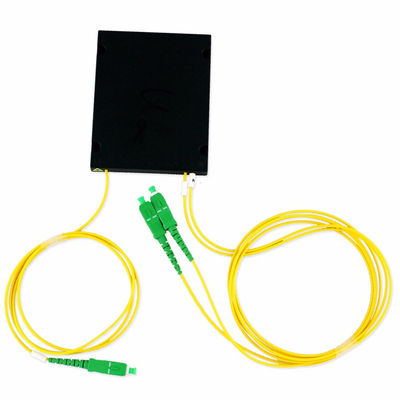

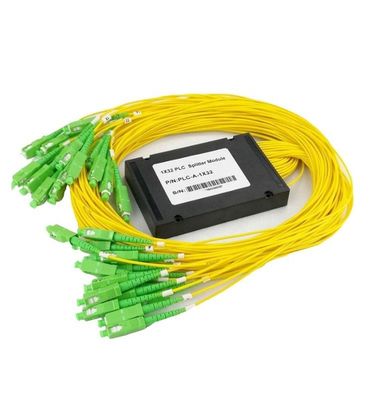

ABS box type PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.Characterstic
•Excellent Mechanical,Small Size.
•High Reliability.
•Low insertion Loss and low Polarization Dependent loss.
•High channel counts.
•Excellent Environmental Stability and Widely Used.
•Connector Type: SC or Customer specified.

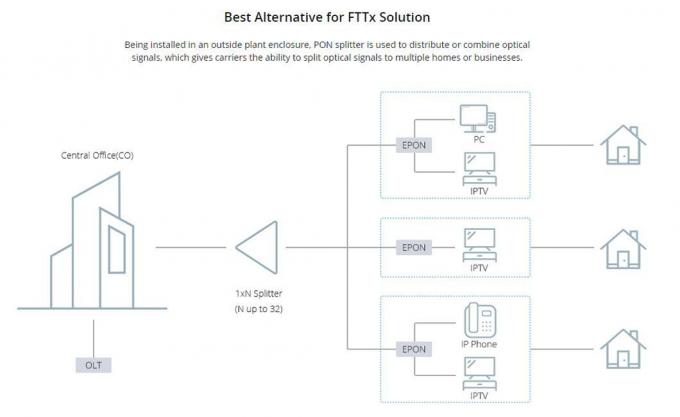

Application
•FTB Deployments(GPON/BPON/EPON).
•Cable television (CATV).
•Local area networks (LAN).
•Test equipment.
•Passive optical networks(PON).
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

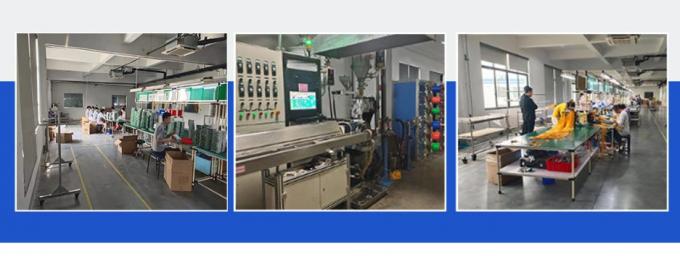

Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
