50/50 Ratio Sc/APC Mini Steel Tube Splitter ABS Box Type Micro 1X2 PLC Splitter
| Certification | CE, ISO, RoHS |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | FBT Splitter | Application | Fiber Distribution Frame, Network Equipment, Fiber Module |
|---|---|---|---|
| Light Source TYPE | Passive | Connector Type | SC-PC |
| Brand | OEM | Split Ratio | From 50/50 To 5/95 |
| Operating Wavelength(Nm) | 1310/1550nm | Directivity(dB) | APC>55, Upc>50 |
| Code | Splitter | Polarization Dependent Loss(dB) | <0.2 |
| Fiber Type | G657A1 Or Customized | Condition | New |
| Wiring Devices | ODF | Type | Fiber Optic Splitter&Coupler |
| Transport Package | Carton | Specification | Customizable |
| Trademark | Dierite | Origin | Changzhou Jiangsu China(Mainland) |
| Supply Ability | 800000pieces/Month | Transmission Medium | Single-Mode |
| Structure | SC | Number Of Cores | Single-Core |
| Ferrule Endface | PC(UPC) | Shape | Square |
| Fabrication Process | Moulded | Samples | US$ 0/Piece 1 Piece(Min.Order) | Request Sample |
| Customization | Available | Customized Request | ||
| High Light | 50/50 Ratio Mini Steel Tube Splitter,Box Type Micro 1X2 PLC Splitter,50/50 Ratio 1X2 PLC Splitter |
||
Product Description
Product Description

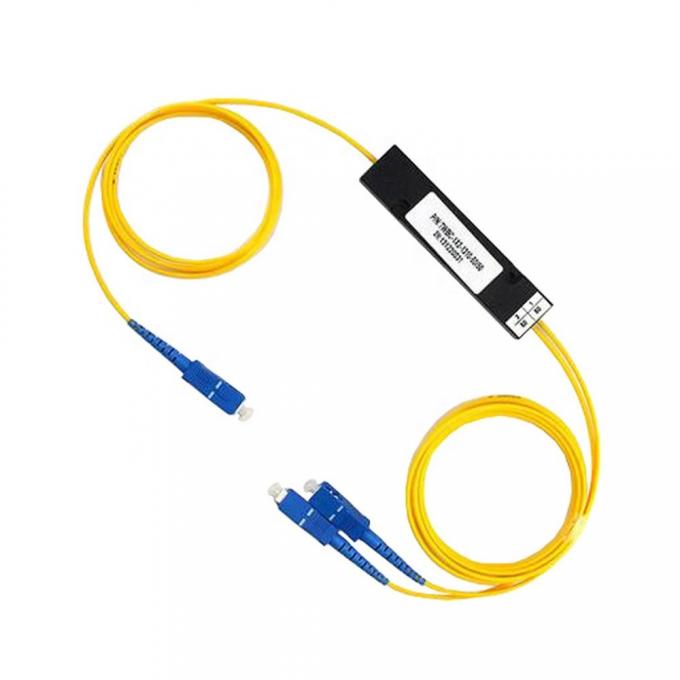

50/50 Ratio Sc/APC ABS Box Type FTTH Mini Steel Tube Splitter Fiber Optic Micro 1X2 PLC Splitter
Technical parameters
| Type | 1x2 single mode FBT splitter |
| Operating Wavelength(nm) | 1310/1550nm |
| Split Ratio | from 50/50 to 5/95 |
| Polarization Dependent Loss(dB) | <0.2 |
| Directivity(dB) | APC>55,UPC>50 |
Order information
| Code | Splitter | |||||||
| Configuration | 0102 | 0104 | 0108 | 0116 | 0132 | |||
| 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | ||||
| Connector Type | SC | LC | FC | ST | ||||
| Ferrule Type | UPC | APC | ||||||
| Fiber Type | G657A1 or Customized | |||||||
| Jacket | Material | PVC/LSZH | ||||||
| Color | Yellow | Blue | Black | Orange | Aqua | Purple | Customized | |
| Diameter (mm) | 0.9 | 2.0 | ||||||
| Cable Length(cm) | Input | 50 | 70 | 100 | 150 | Customized | ||
| Output | 50 | 70 | 100 | 150 | Customized | |||
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Product profile

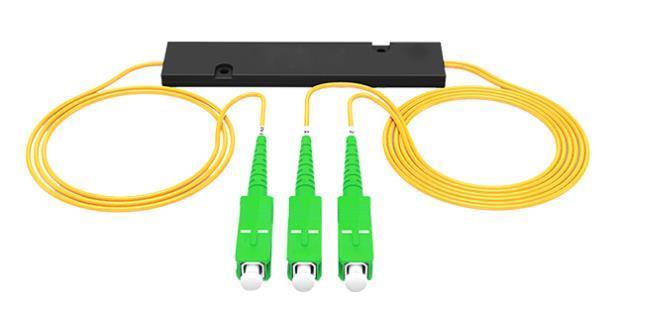

FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. It has small size, high reliability cheap cost and good channel-to-channel uniformity and it is widely used in PON networks to realize optical signal power splitting. It can do different split ratio, from 50/50 to 95/5.Characterstic
•Materials in line with the I EC standard connector. •Distribution frame in the ODF to achieve sub-line. •Low PDL
•Compact Design.
•Low Insertion loss.
•Good channel-to-channel uniformity.
•Excellent direction and interchangeability.
Application
•CATV Systems & Fiber Optic Sensors.
•Fiber Optic communication system.
•Local Area Network.
•Testing instruments.
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

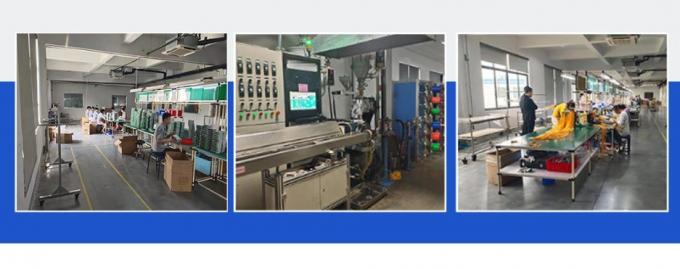

Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
