OM3 Simplex Fiber Optic Cable Singlemode Multimode SXC Single Core Optical Cable

Place of Origin China
Brand Name Dierite
Certification ISO9001 CE ROHS
Model Number SXC
Minimum Order Quantity 1000M
Packaging Details 1000M/Wood Roll
Delivery Time 7-15 DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Cable Diameter 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm Fiber Type B1.3=G652D B6A1=G657A1 B6A2=G657A2 OM1=62.5/125 OM2=50/125 OM3= Maxband*150 OM3=Maxband*300 OM4= Maxband*550 OM5= Maxband*550
Jacket Color Yellow Orange Aqua Customized Jacket Material PVC LSZH
High Light

OM3 Simplex Fiber Optic Cable


SXC Single Core Optical Cable


OM3 Fiber Optic Cable Singlemode Multimode

Leave a Message
Product Description

Simplex Fiber Optic Cable Singlemode And Multimode for Data Communication SXC, GJFJV


The SXC single-core optical cable uses a single Φ900μm or Φ600μm tight buffer optical fiber as the optical transmission medium, and a layer of aramid fiber is used as the force-strengthening unit. The outer jacket is extruded with a layer of PVC or LSZH (Low-smoke, halogen-free, flame-retardant) .


Product feature
● Excellent stripping performance of tight buffer fiber.

● The aramid fiber-reinforced element makes the optical cable have excellent tensile performance.

● The outer protective material has the advantages of corrosion resistance, waterproof, UV resistance, flame retardant, environmental protection, etc.


* Optical fiber jumper or pigtail.

* Indoor riser level and plenum level cable distribution.

* Interconnect between instruments and communication pieces of equipment.

Cable outer diameter 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm
Fiber type B1.3=G652D,B6A1=G657A1,B6A2=G657A2,A1=50/125,A1b=62.5/125, OM3= Maxband*150,OM3=Maxband*300,OM4= Maxband*550,OM5=Maxband*550
Fiber count Simplex, Duplex
Outer jacket material V-PVC, Z-LSZH
Outer jacket color Refer to Chromatogram
Marking&package Per the customer's request or factory standard


Cable type Cable diameter
Optical cable reference weight

Fiber buffer fiber diameter


Tensile Strength

Long/short term

Crush resistance

Long/short term

Bending Radius


SXC-1.6 1.65±0.05 2.6 0.6±0.05 40/80 100/500 60/30
SXC-2.0 1.95±0.05 3.5 0.9±0.05 60/100 100/500 60/30
SXC-3.0 2.85±0.05 6.5 0.9±0.05 60/100 100/500 60/30


Fiber type Attenuation

Full injection


Effective mode bandwidth 10G Ethernet link length

Minimum bend


Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Normal Max Normal Max
Unit dB/km dB/km dB/km dB/km m mm
G652D 0.36/0.22 0.5/0.4 --- --- --- --- --- 16
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
50/125 --- --- 3.0/1.0 3.5/1.5 ≥500/500 --- --- 30
62.5/125 --- --- 3.0/1.0 3.5/1.5 ≥200/500 --- --- 30
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30

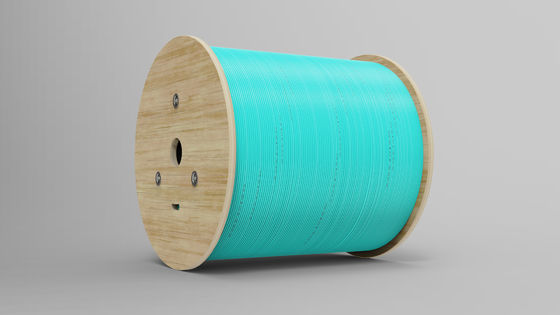

OM3 Simplex Fiber Optic Cable Singlemode Multimode SXC Single Core Optical Cable 0


Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.

OM3 Simplex Fiber Optic Cable Singlemode Multimode SXC Single Core Optical Cable 1
