Duplex Zipcord Fiber Optic Cable Singlemode Multimode ZCC GJFJV-2F
| Place of Origin | China |
|---|---|
| Brand Name | Dierite |
| Certification | ISO9001 CE ROHS |
| Model Number | ZCC |
| Minimum Order Quantity | 1000M |
| Packaging Details | 1000M/Wood Roll |
| Delivery Time | 7-15 DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Diameter | 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm | Fiber Type | B1.3=G652D B6A1=G657A1 B6A2=G657A2 OM1=62.5/125 OM2=50/125 OM3= Maxband*150 OM3=Maxband*300 OM4= Maxband*550 OM5= Maxband*550 |
|---|---|---|---|
| Jacket Color | Yellow Orange Aqua Customized | Jacket Material | PVC LSZH |
| High Light | Duplex Zipcord Fiber Optic Cable,Zipcord Fiber Optic Cable Singlemode Multimode,ZCC GJFJV-2F Fiber Optic Cable |
||
Product Description
Duplex Zipcord Fiber Optic Cable Singlemode And Multimode For Data Communication ZCC, GJFJV-2F

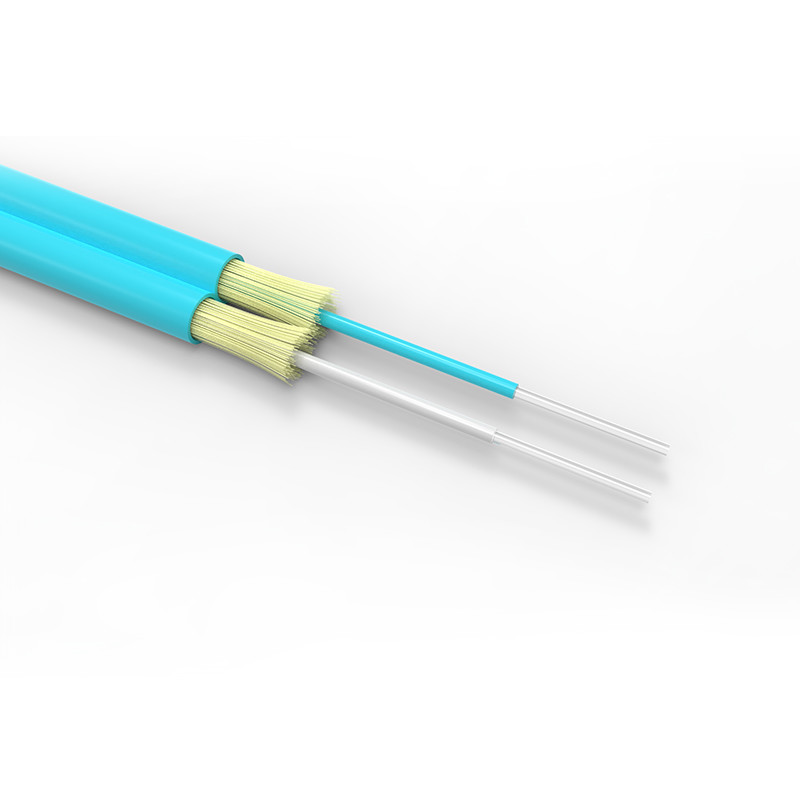

ZCC duplex zipper optical cable uses Φ900µm or Φ600µm tight buffer optical fiber as the optical transmission medium, and a layer of aramid fiber is used as a force-reinforcing unit, and a layer of zipper PVC or low-smoke halogen-free material(LSZH) is extruded on the out jacket.
Product feature
● Tight buffer fiber has good flame retardancy.
● Excellent Stripping performance of tight buffer fiber.
● The aramid fiber reinforced element makes the optical cable have excellent tensile performance.
● The outer protective material has the advantages of corrosion resistance, waterproof, UV resistance, flame retardant, environmental protection, etc.
● The figure eight structure jacket is easy to peel off the branches and use.
| Cable outer diameter | 1.6-φ1.6mm 2.0-φ1.95mm 3.0-φ2.85mm | |
| Fiber type | B1.3=G652D,B6A1=G657A1,B6A2=G657A2,A1=50/125,A1b=62.5/125, OM3= Maxband*150,OM3=Maxband*300,OM4= Maxband*550,OM5=Maxband*550 | |
| Fiber count | Simplex, Duplex | |
| Outer jacket material | V-PVC, Z-LSZH | |
| Outer jacket color | Refer to Chromatogram | |
| Marking&package | Per the customer's request or factory standard | |
| Cable type | Caple diameter (mm) |
Optical cable reference weight (kg/km) |
Fiber buffer fiber diameter (mm) |
Tensile Strength Long/short term |
Crush resistance Long/short term |
Bending Radius Dynamic/static |
| ZCC-1.6 | 1.65*2±0.05 | 5.2 | 0.6±0.05 | 40/80 | 100/500 | 60/30 |
| ZCC-2.0 | 1.95*2±0.05 | 7.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
| ZCC-3.0 | 2.85*2±0.05 | 13.0 | 0.9±0.05 | 100/200 | 100/500 | 60/30 |
| Fiber type | Attenuation |
Full injection bandwidth |
Effective mode bandwidth | 10G Ethernet link length |
Minimum bend radius |
|||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Normal | Max | Normal | Max | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Note:
Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.
